Seeds Fermentation Tank

Hangzhou Huihe Machine Facture Co., Ltd specializing in the production of stainless steel vessel equipment such as seed tank, the seed tank is widely used for microbial growth; in fermentation tank all kinds of microorganisms in the appropriate environment in the fermented growth, metabolism and the formation of fermentation product.

Usages of Seeds Fermentation Tank

It is a kind of stainless steel tank and mainly used for dairy, food, biotechnology, beverage, wine and other industry to stir and ferment.

It’s mainly for the production of monosodium glutamate, citric acid, enzymes, glycerin, pharmaceutical, food.

Characteristics of Seeds Fermentation Tank

1、 Dissolved oxygen rate is high, the mixing effect is good;

2、 Seeds fermentation equipment using imported SUS304 or 316 l stainless steel, acid and alkali resistance, corrosion resistance, strong productivity;

3、 The tank is equipped with automatic spray cleaning; ensure production processes comply with GMP requirements;

4、 To avoid and prevent the contamination of microorganism in the air, greatly prolong the retention period of the product and your product integrity;

5、 Heat preservation adopts polyurethane foam or pearl cotton, the surface grind arenaceous inferior smooth processing in accordance with GMP requirements;

6、 Cleaning and convenient operation.

Technical Parameters of Seeds Fermentation Tank

Volume(M3)	Body diameter D（mm）	Body height H（mm）	Heat transfer area M2	Stirring shaft speed r.p.m	stirring shaft power KW
0.05	300	700	400	300-350	0.55
0.1	400	800	500	300-350	0.75-1.1
0.2	500	1000	600	280-340	0.75-1.5
0.3	550	1200	650	280-340	1.1-1.5
0.5	600	1650	700	280-320	1.5-2.2
0.8	800	1600	900	200-280	2.2-5.5
1.0	800	1900	900	200-280	2.2-5.5
1.2	900	1800	1000	200-280	3-7.5
1.5	900	2200	1000	200-280	3-7.5
2.0	1000	2500	1100	200-260	4-11
3.0	1200	2600	1300	200-260	5.5-11
4.0	1300	3000	1400	200-220	7.5-15
5.0	1400	3200	1500	180-220	7.5-18.5

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.

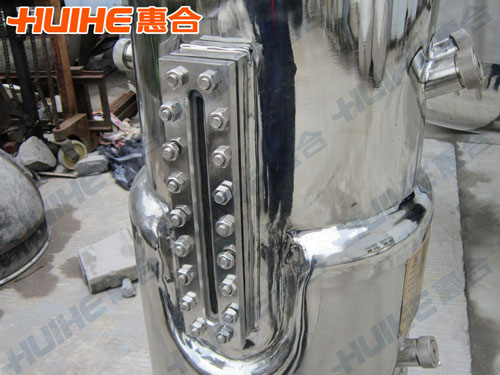

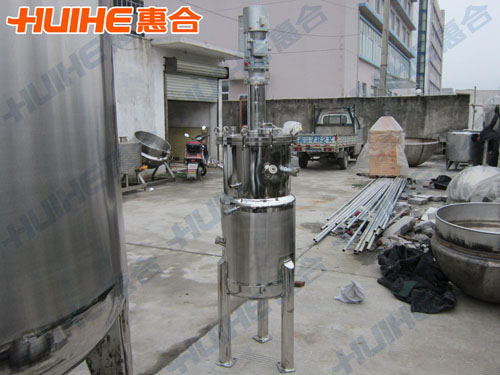

Seeds Fermentation Tank Finished Picture
