High Speed Scattered Homogenizer

High speed scattered homogenizer is after mixing, emulsifying, pounding machine series and latest development of products. It has high speed, stable operation, low noise, big power, scattered homogeneous character such as good effect, and also stirring, mashed, emulsification and other functions.

Live Demonstration of Homogenizer

Usages of High Speed Scattered Homogenizer

Elaboration chemical: Pigment, dyestuff, paint, paint, plastic, etc.
Petroleum chemical: Lubricating oil, heavy oil mixing, diesel emulsification, emulsifying asphalt, catalysts, etc.
Pesticide chemical: Chemical fertilizer, pesticide emulsifier, pesticides, herbicides, fungicides, plant hormones, urea, compound fertilizer, etc
Biological medicine: Pulp cells, the protein dispersant, medicine cream, antibiotics, sugar, etc.
Daily chemical: Skin cream, detergent, antiseptic, hairdressing supplies, toothpaste, daily essence, etc.
Food industry: Food additives, flavors, spices, fruit juice, jam, ice cream, dairy products, chocolate, etc.
Coating printing ink: Exterior coating, adhesive, printing ink, ink, etc;
Paper industry: Mixed pulp, paint, adhesives, resin emulsion, etc.

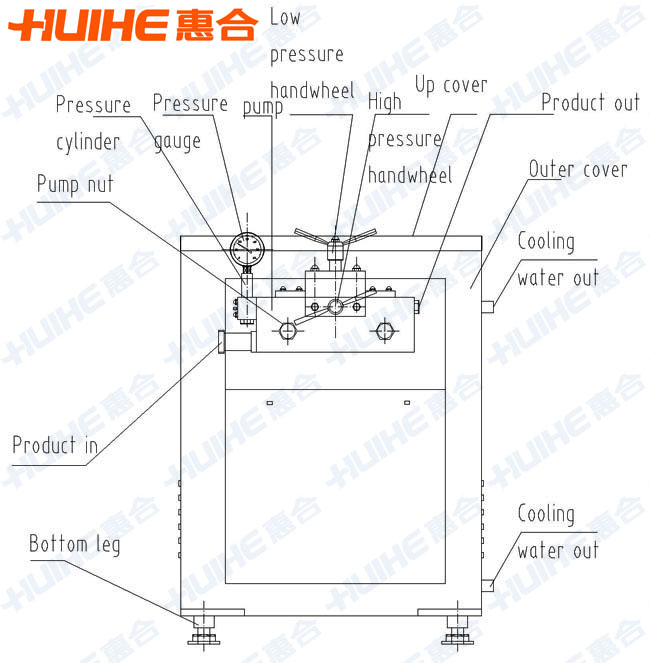

Structure of High Speed Scattered Homogenizer

Characteristics of High Speed Scattered Homogenizer

    This homogeneous equipment using suction homogenate in structure, high speed. Enough to not miscibility between the liquid and efficiently homogenate, emulsification and trace organic compounds in water and lipid soluble content and extraction of organic solvent soluble substances.
Organizations are for all kinds of animals; plants can achieve homogenate and mixed.
    It can break the cell membrane to the nucleus separation, and can use different speed makes a DNA strand break column or macromolecular material is broken into small molecules.
When low speed can be used as a stirrer.
Speed digital display, intuitive readings.
    This scatted homogenizer equipped with two different specifications of the cutting tool (from 10 mm, 18 mm), the user can choose according to the size of the vessel diameter, free, and convenient installation. Tool adopts high quality stainless steel, corrosion resistance, high temperature resistant performance, and easy to clean disinfection.

Technical parameters of Homogenizer

Model	Flow L/H	Maximum pressure（MPa）	Rated pressure（MPa）	Motor power（KW）	Body size （lengthwidthheight）
GJJ-0.2/25	200	25	20	2.2	755520935
GJJ-0.3/25	300	25	20	3	755520935
GJJ-0.5/25	500	25	20	4	1010616975
GJJ-0.8/25	800	25	20	5.5	10206761065
GJJ-1/25	1000	25	20	7.5	11006761065
GJJ-1.5/25	1500	25	20	11	11007701100
GJJ-2/25	2000	25	20	15	14108501190
GJJ-2.5/25	2500	25	20	18.5	14108501190
GJJ-3/25	3000	25	20	22	14109601280
GJJ-4/25	4000	25	20	30	155010501380
GJJ-5/25	5000	25	20	37	160512001585
GJJ-6/25	6000	25	20	45	167112601420
GJJ-8/25	8000	25	20	55	167112601420
GJJ-10/25	10000	25	20	75	272513981320
GJJ-12/25	12000	25	20	90	282515001320
GJJ-0.3/32	300	32	25	4	1010616975
GJJ-0.5/32	500	32	25	5.5	10206761065
GJJ-0.8/32	800	32	25	7.5	11006761065
GJJ-1/32	1000	32	25	11	11007701100
GJJ-1.5/32	1500	32	25	15	14108501190
GJJ-2/32	2000	32	25	18.5	14108501190
GJJ-2.5/32	2500	32	25	22	14109601280
GJJ-3/32	3000	32	25	30	155010501380
GJJ-4/32	4000	32	25	37	160512001558
GJJ-5/32	5000	32	25	45	160512001585
GJJ-6/32	6000	32	25	55	167112601420
GJJ-8/32	8000	32	25	75	272513981320
GJJ-0.1/40	100	40	35	3	755520935
GJJ-0.3/40	300	40	35	5.5	10206761065
GJJ-0.5/40	500	40	35	7.5	11006761065
GJJ-0.8/40	800	40	35	11	11007701100
GJJ-1/40	1000	40	35	15	14108501190
GJJ-1.5/40	1500	40	35	22	14108501280
GJJ-2/40	2000	40	35	30	155010501380
GJJ-2.5/40	2500	40	35	37	160512001585
GJJ-3/40	3000	40	35	45	160512001585
GJJ-4/40	4000	40	35	55	167112601420
GJJ-5/40	5000	40	35	75	200014001500
GJJ-6/40	6000	40	35	90	282515001320
GJJ-0.1/60	100	60	50	4	10206761065
GJJ-0.2/60	200	60	50	5.5	10206761065
GJJ-0.360	300	60	50	7.5	11006761065
GJJ-0.560	500	60	50	11	11007701100
GJJ-0.8/60	800	60	50	18.5	14108501190
GJJ-1/60	1000	60	50	22	14709601280
GJJ-1.5/60	1500	60	50	37	160512001585
GJJ-2/60	2000	60	50	45	200013001585
GJJ-2.5/60	2500	60	50	55	200013001585
GJJ-3/60	3000	60	50	75	272513981320
GJJ-4/60	4000	60	50	90	282515001320
GJJ-5/60	5000	60	50	110	282515001320
GJJ-0.1/70	100	70	60	5.5	10206761065
GJJ-0.2/70	200	70	60	7.5	11006761065
GJJ-0.3/70	300	70	60	11	11007701100
GJJ-0.5/70	500	70	60	15	14108501190
GJJ-1/70	1000	70	60	22	14108501280
GJJ-1.5/70	1500	70	60	37	160512001585
GJJ-2/70	2000	70	60	45	200013001585
GJJ-2.5/70	2500	70	60	55	167112601420
GJJ-3/70	3000	70	60	75	272513981320
GJJ-4/70	4000	70	60	90	282515001320
GJJ-5/70	5000	70	60	110	282515001320
GJJ-0.1/100	100	100	80	7.5	11006761065
GJJ-0.2/100	200	100	80	11	11007701100
GJJ-0.3/100	300	100	80	15	14108501190
GJJ-0.5/100	500	100	80	18.5	14108501190
GJJ-1/100	1000	100	80	37	160512001585
GJJ-2/100	2000	100	80	75	272513981320
GJJ-3/100	3000	100	80	110	282515001320

Notes:

1. Technical parameters of homogenizer in chart are standard requirements, any other requirement, please put forward.

2. the technology parameters that need provided: the material properties, production, maximum pressure, special requirements, etc.

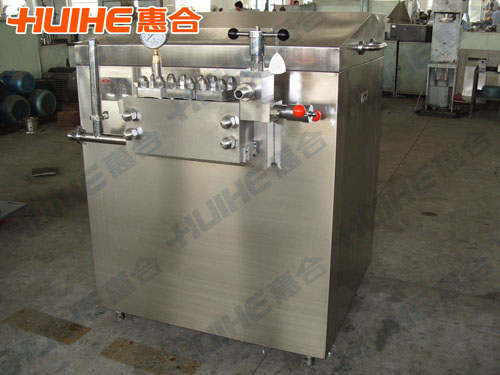

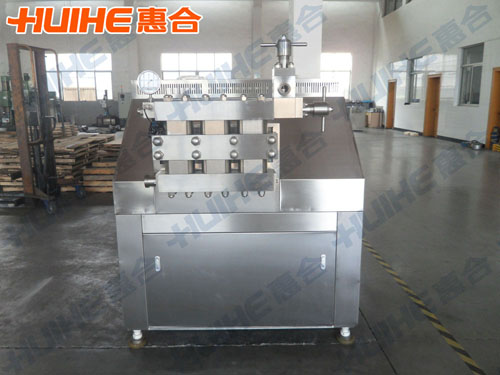

High Speed Scattered Homogenizer Finished Picture
