Beer Fermentation Tank

Beer fermentation tank is used for the fermentation of beer and wine storage, it is mainly composed of fermentation tank and seeds tank, they are attached to each raw material (medium) modulation, steaming, sterilization and cooling equipment, ventilation adjustment and aseptic equipment, as well as the agitator and so on. The fermentation tanks mainly undertake the product production tasks. Seed tank mainly to ensure that the necessary bacteria fermentation tank culture dimension for the purpose.

Structure of Beer Fermentation Tank

Beer fermentation tank for cylindrical tanks, are disc or conical bottom and top cover. In the process of alcohol grieved, for the sake of the recycling of CO2 gas and its part of the legacy of alcohol, fermentation tank should be closed. Roof with a manhole, sight glasses, and carbon dioxide recycle pipe, feeding tube, vaccination, pressure gauges and measuring instrument interface, etc.

Usages of Beer Fermentation Tank

The fermentation equipment is a kind of stainless steel tank and widely used in factories, hotels, household (small beer fermentation tank), and other places used for wine.

Characteristics of Beer Fermentation Tank

1, Automatic program sterilization, programmable sterilization process control;

2, Order can be set sterilization, range: 100 ℃ ~ 130 ℃, pneumatic valve controlled by the program for high temperature sterilization.

3, For some varieties of fermentation requirements of sterilization temperature fluctuation is small, can reduce the labor intensity of sterilization,

4, Can choose automatic program control, sterilization temperature very accurate at this time.

Technical Parameters of Beer Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.

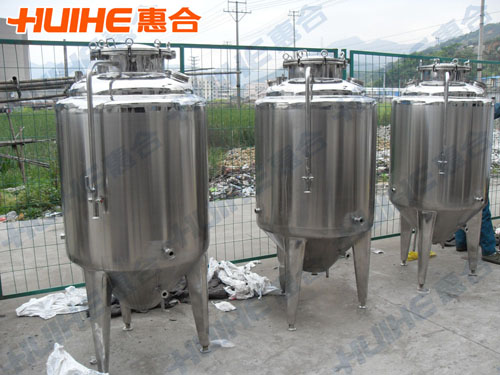

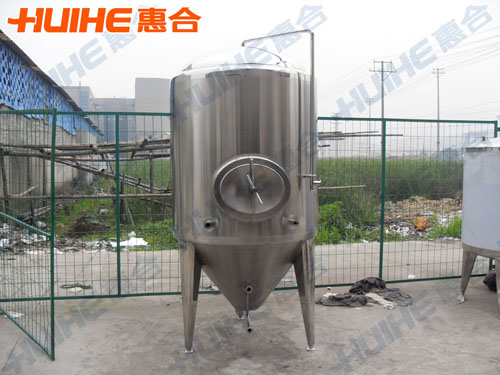

Beer Fermentation Tank Finished Picture
