Your are here: Home >> Products >>Strains Cultivating Tank
Strains cultivating tank belong to stainless steel tank equipment, it’s widely used in the field of dairy, beverage, biotechnology, pharmaceutical and fine chemical industry. Be used in the work of cultivating yogurt starter cultures.
Directory
- Classification of Strains Cultivating Tank
- Structure of Strains Cultivating Tank
- Usage of Strains Cultivating Tank
- Characteristics of Strains Cultivating Tank
- Technical Parameters of Strains Cultivating Tank
- Technical Requirements of Strains Cultivating Tank
- Strains Cultivating Tank Finished Picture
Classification of Strains Cultivating Tank
1. According to Structure: opening on the head & conical sealed head on the bottom, up & down elliptical sealed head
2. According to Heating Type: there are Steam Heating and Electric Heating
3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

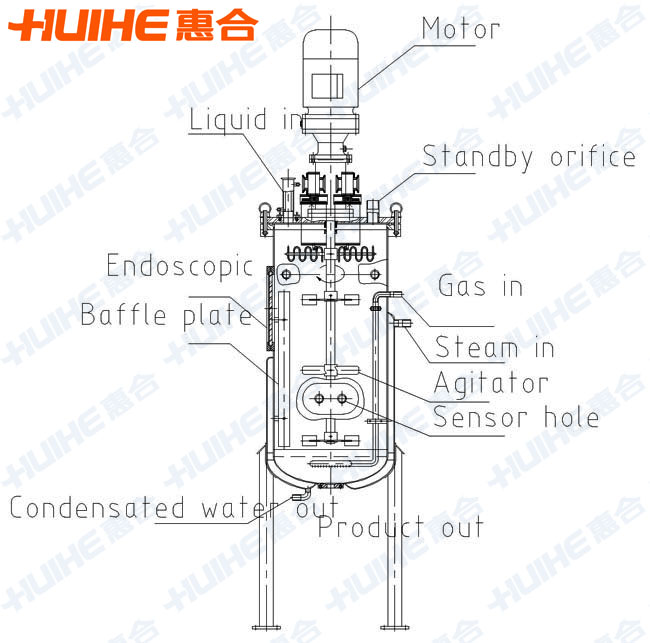

Structure of Strains Cultivating Tank
Body Material:
a). Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
b). the whole machine is made of stainless steel (SUS304/SUS316L)
Usage of Strains Cultivating Tank
Strains cultivating tank apply to yogurt and lactobacillus drink liquor fermentation, brewing, seasoning, pharmaceutical, chemical and fungi cultivate, it can be heat cool and heat preservation, is special fermentation equipment which is fully enclosed health type.
Characteristics of Strains Cultivating Tank
1. Mirror polishing and wiredrawing two kinds of surface treatment technology.
2. All welding is argon gas protection and double-sided welding.
3. Insulation material: polyurethane or rock wool.
4. Foundation bolt: can adjust the height of the equipment, easy to install.
Technical Parameters of Strains Cultivating Tank
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
Body diameter(mm) |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
Body height(mm) |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
Motor power(kw) |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
3 |
Stirring speed(rpm) |
36r/min | ||||||||
Working pressure |
≤0.09Mpa | ||||||||
Working temperature |
<100℃ | ||||||||
Accessories |
Sanitary manhole, cleaning ball、safety valve、pressure gauge |
Notes:
1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.
2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.
3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.
Technical Requirements of Strains Cultivating Tank
1. File support: the structural size drawing of the device (PDF) and instructions are available.
2. Required by operated function, the following criteria are adopted to design, manufacture and test
A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;
B. << The Steel Pressure Vessel (GB150-1998)>>;
C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;
D. << Food Machinery Safety and Heath (GB 16798-1997)>>.

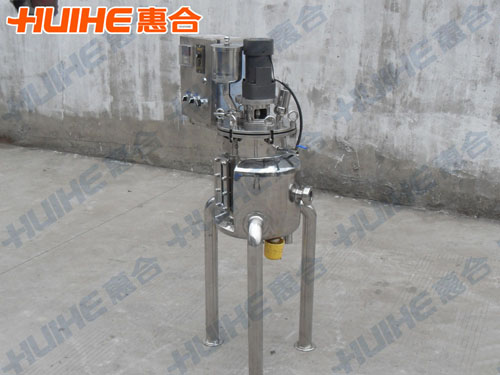

Strains Cultivating Tank Finished Picture
