Electric Heating Reaction Tank (Vessel)

Electric heating reaction tank (vessel) belongs to stainless steel container equipment. the reaction vessel is to absorb advanced technology at home and abroad on the basis of the successful development of new products, can achieve the purpose of less investment, quick production, and high efficiency.

Working Principle of Electric Heating Reaction Tank (Vessel)

Reaction vessel usually said reaction pot or tank, the heating jacket heating principle is to use electric heating rod inside the heat conduction oil, make the heat conduction oil temperature up to the required temperature, then have a temperature control instrument control electric heating rod power constant temperature.

Usages of Electric Heating Reaction Tank (Vessel)

The reaction equipment widely used in medicine, building materials, chemicals, paint, resin, food, scientific research and other units used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization and condensation process, is to participate in the reaction material mix as the premise, for heating, cooling, and liquid extraction and gas absorption process of physical change all adopt mixing plant are needed to get to the good effect.

Characteristics of Electric Heating Reaction Tank (Vessel)

1. In contact with the pot material of the pot body and parts adopt OCr18Ni9 or 1 cr18ni9ti stainless acid-resistant steel plate;
2. The advantages of low investment, fast production and high efficiency;
3. With a quick heating, high temperature resistant, corrosion resistance, health, pollution-free;
4. No automatic boiler heating, easy to use;
5. Heat transfer effect is better than the enamel reaction kettle, fast heating and cooling.

Technical Parameters of Electric Heating Reaction Tank (Vessel)

Volume (L)	Electric power	Inner pot diameter(mm)	Jacketed diameter(mm)	Reducer Model	Motor n/KW	Stirring speed r.p.m
50	4×2 KW	φ400	φ600	BLD 0.8-1	1450/0.8	60-100
100	6×2 KW	φ500	φ700	BLD 1.1-1	1450/1.1	60-100
300	6×3 KW	φ800	φ1000	BLD 2.2-2	1450/2.2	60-100
500	9×3 KW	φ900	φ1100	BLD 3-2	1450/3	60-100
1000	12×4 KW	φ1200	φ1400	BLD 4-3	1450/4	60-100
2000	15×5 KW	φ1400	φ1600	BLD 4-3	1450/4	60-100
3000	15×6 KW	φ1600	φ1800	BLD 5.5-3	1450/5.5	60-100

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.

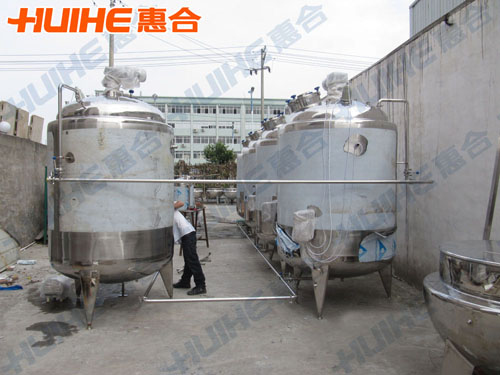

Electric Heating Reaction Tank (Vessel) Finished Picture
