Closed Type Cold and Hot Cylinder_ Closed Type Aging Cylinder

Closed type cold and hot cylinder especially suitable for food industry raw materials processing, such as the material of heating, stirring, mixing, cooling, heat preservation, and so on.

Classification of Closed Type Cold and Hot Cylinder

1、 According to the heating medium：natural gas cold and hot cylinder, steam heating cold and hot cylinder, electric heating cold and hot cylinder;

2、 According to structure: ordinary cold and hot cylinder, up and down conical cold and hot cylinder, up and down head cold and hot cylinder.

Usages of Closed Type Cold and Hot Cylinder

In addition to the cold and hot cylinder can be used to the food industry of material processing, it is also widely used in the pharmaceutical industry, beverage manufacturing industry, chemical industry and other industrial production department. One of the most widely used is used in the production of milk processing of heat preservation and sterilization in milk production. So in the dairy industry, food processing industry, enclosed the use of hot and cold cylinders are very common.

Characteristics of Closed Type Cold and Hot Cylinder

cold and hot urn is a kind of stainless steel tank and has the characteristics of energy saving, sound attenuation, corrosion resistance, strong production capacity, easy clean, good isolation, heat preservation performance is good and has cycloid pin gear planetary reducer, material is made of stainless steel manufacturing, etc.

Technical Parameters of Closed Type Cold and Hot Cylinder

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.

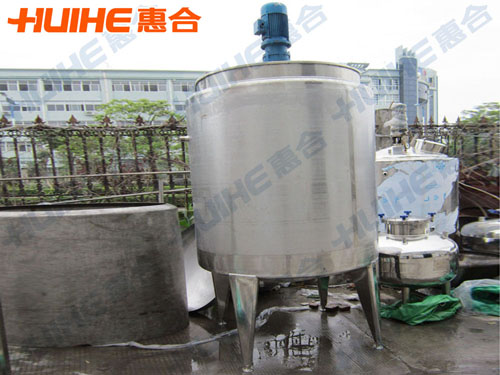

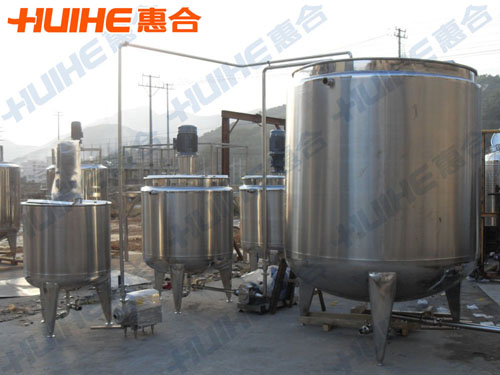

Closed Type Cold and Hot Cylinder Finished Picture
