Your are here: Home >> Products >>Steam Heating Cold and Hot Urn

Directory
- Structure of Steam Heating Cold and Hot Urn
- Characteristics of Steam Heating Cold and Hot Urn
- Technical Parameters of Steam Heating Cold and Hot Urn
- Steam Heating Cold and Hot Urn Finished Picture

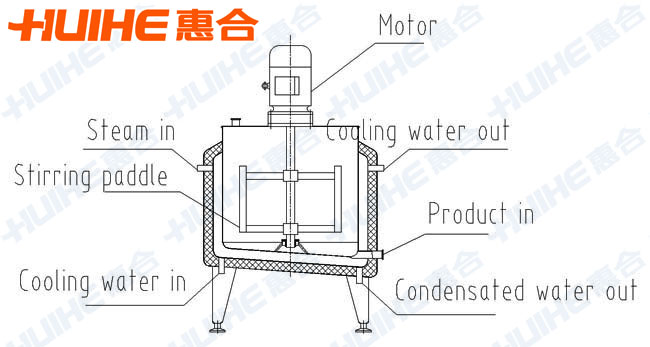

Structure of Steam Heating Cold and Hot Urn

Characteristics of Steam Heating Cold and Hot Urn
cold and hot urn is a kind of stainless steel tank and has the characteristics of energy saving, sound attenuation, corrosion resistance, strong production capacity, easy clean, good isolation, heat preservation performance is good and has cycloid pin gear planetary reducer, material is made of stainless steel manufacturing, etc.
Technical Parameters of Steam Heating Cold and Hot Urn
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
Body diameter(mm) |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
Body height(mm) |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
Motor power(kw) |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
Stirring speed(rpm) |
36r/min | ||||||||
Working pressure |
≤0.09Mpa | ||||||||
Working temperature |
<100℃ | ||||||||
Accessories |
Thermometer、safety valve、pressure gauge |
Notes:
1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.
2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.
3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.

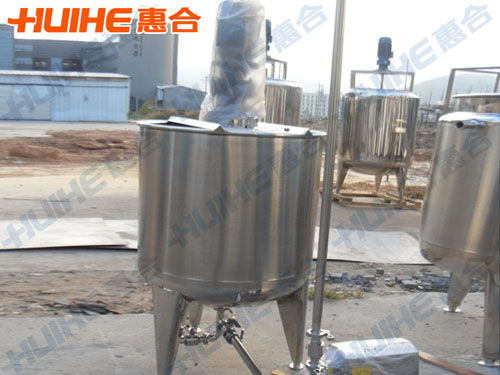

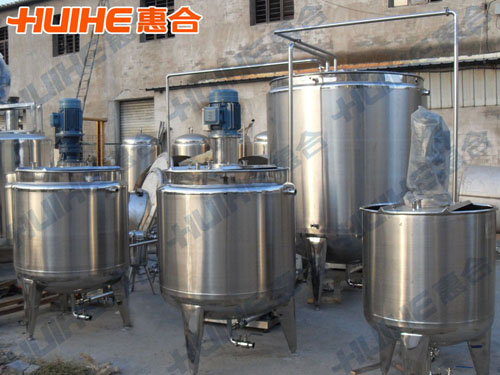

Steam Heating Cold and Hot Urn Finished Picture
