Jacketed Kettle with Agitator

Jacketed kettle with agitator usual use for higher viscosity material, such as porridge, invert sugar etc. Agitate have normal agitate and scraping the bottom and edge, according to the material of the viscous to choose the type which to use.

Live Demonstration of Jacketed Kettle

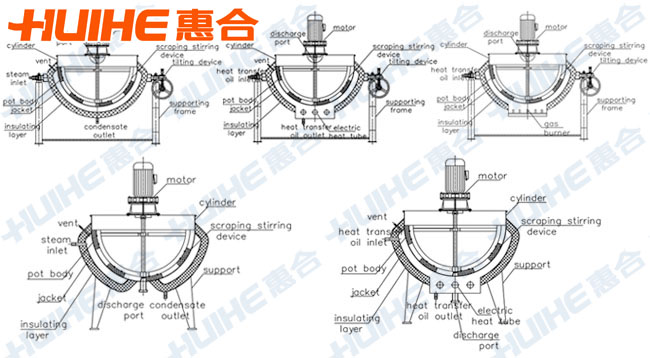

Structure of Jacketed Kettle with Agitator

Usage of Jacketed Kettle with Agitator

Jacketed kettle with agitator usual use for porridge, invert sugar , boil the chicken, fried a dish and the material has the consistency.

Characteristics of Jacketed Kettle with Agitator

Accelerating heating speed, improve food quality, safe and convenient, rapid agitating viscosity material make it nonstick skillet!

Technical Parameters of Jacketed Kettle with Agitator

Model		50	100	200	300	400	500	600	800	1000
Caliber（mm）		Φ600	Φ700	Φ800	Φ900	Φ1000	Φ1100	Φ1200	Φ1400	Φ1500
Depth of Pot（mm）		400	450	530	630	680	730	780	830	900
Heating area（m2）		0.45	0.58	1.12	1.42	1.75	2	2.3	3.2	3.9
Boiling time（min）		5	8	11	14	18	22	25	34	40
Interface size	Steam pipe	3/4”			1”				2”
Interface size	Condensate pipe	3/4”				1”
Working pressure		≤0.09Mpa（can be adapted according to customers’ requirement）
Stirring speed		36 r/min（can be adapted according to customers’ requirement）
Stirring power（Kw）		0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2

Notes:

1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.

2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.

3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.

Jacketed Kettle with Agitator Finished Picture

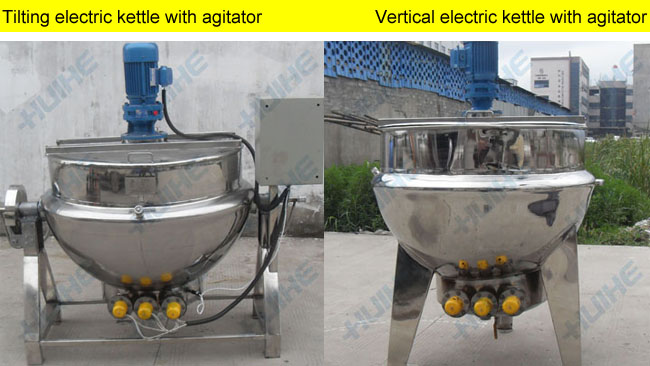

electric jacket kettle with agitator

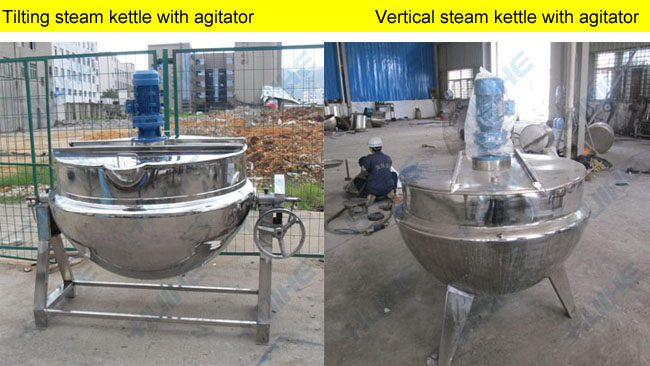

steam jacket kettle with agitator
