Electric Heating Reaction Tank (Vessel)

Electric heating reaction tank (vessel) absorb advanced technology at home and abroad on the basis of the successful development of new products. It can achieve the purpose of less investment, quick production and high efficiency.

Structure of Electric Heating Reaction Tank (Vessel)

Electric heating reaction tank (vessel) consists of pot body, pot cover, mixer, jacket, bearing and gear, shaft sealing device, etc. It is equipped with electric heating rod, temperature and pressure gauge. The material and open hole can be according to the technological requirements of users.

Usages of Electric Heating Reaction Tank (Vessel)

This stainless steel tank is widely used in medicine, building materials, chemicals, paint, resin, food, scientific research and other units used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization and condensation process, is to participate in the reaction material mix as the premise, for heating, cooling, and liquid extraction and gas absorption process of physical change all adopt mixing plant are needed to get to the good effect.

Characteristics of Electric Heating Reaction Tank (Vessel)

1. The advantages of low investment, fast production and high efficiency;
2. With a quick heating, high temperature resistant, corrosion resistance, health, pollution-free;
3. No automatic boiler heating, easy to use;
4. Heat transfer effect is better than the enamel reaction kettle, fast heating and cooling.

Technical Parameters of Reaction Tank (Vessel)

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.

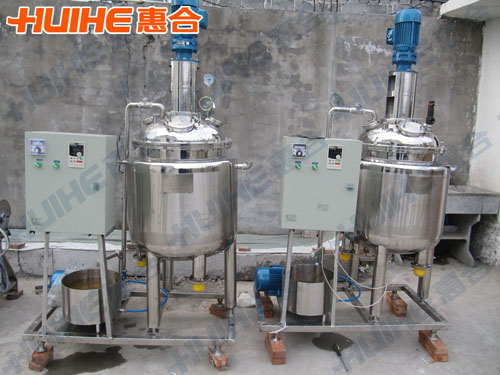

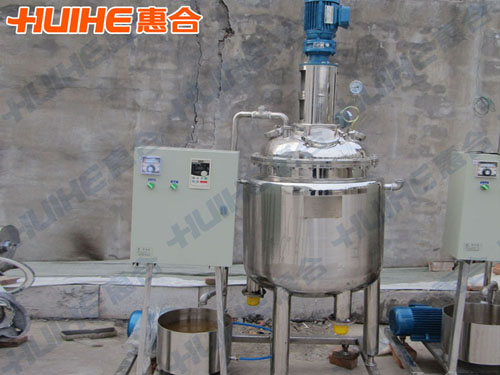

Electric Heating Reaction Tank (Vessel) Finished Picture
