Stainless Steel Titanium Rod Filter

The titanium rod filter uses titanium powder sintering core，generally used in crude filter or intermediate filtration. The filter core has high precision, high temperature resistant, titanium rod filter corrosion resistance, high mechanical strength and other advantages, widely used in the industries of medicine. The shell material is 304 or 316L stainless steel, which is in accordance with GMP standard.

Usages of Stainless Steel Titanium Rod Filter

It uses the powder metallurgy method to sinter titanium metal powder through high heat processing method to achieve hollow tube, which is widely used in the food, beverage, medicine and chemical industry for solid-liquid separation. Especially for decarburization filtration in big infusion and injection production line.

Characteristics of Stainless Steel Titanium Rod Filter

1, This filter using 316L stainless steel materials for shell, internal filter core for titanium tube, with characteristics of light texture, high temperature resistant, high pressure resistant, strong acid resistant, strong alkali resistant and corrosion resistance, and filter core can be used repeatedly.

2, This series product owns compact structure and beautiful appearance, according to GMP standard production. Fitting connection uses international standards fast loading connections, convenient disassembling and washing.

Technical Parameters of Stainless Steel Titanium Rod Filter

Model	Total length(mm)	Shell length (mm)	Shell diameters (mm)	Max diameter (mm)	Flow (t/h)
AT1-5	400	200	100	130	0.16
AT1-10	500	300	100	130	0.33
AT3-10	700	300	225	265	1.00
AT5-10	700	300	275	315	1.65
AT7-10	700	300	275	315	2.31
AT9-10	700	300	300	340	3.00
AT11-10	700	300	325	365	3.65
AT13-10	700	300	375	415	4.30
AT15-10	700	300	375	415	4.95
AT25-10	700	300	450	490	8.25
AT50-10	700	300	600	640	16.50
AT1-20	850	550	100	130	0.66
AT3-20	950	550	225	265	2.00
AT5-20	950	550	275	315	3.30
AT7-20	950	550	275	315	4.62
AT9-20	950	550	300	340	5.94
AT11-20	950	550	325	365	7.26
AT13-20	950	550	375	415	8.58
AT15-20	950	550	375	415	9.90
AT25-20	950	550	450	490	16.5
AT50-20	950	550	600	640	33.00
AT1-30	850	800	100	130	1.00
AT3-30	950	850	225	265	3.00
AT5-30	950	850	275	315	5.00
AT7-30	950	850	275	315	7.00
AT9-30	1250	850	300	340	9.00
AT11-30	1250	850	325	365	11.00
AT13-30	1250	850	375	415	13.00
AT15-30	1250	850	375	415	15.00
AT25-30	1250	850	450	490	25.00
AT50-30	1250	850	600	640	50.00
AT1-40	1500	1100	100	130	1.33
AT3-40	1500	1100	225	265	3.99
AT5-40	1500	1100	275	315	6.65
AT7-40	1500	1100	275	315	9.31
AT9-40	1500	1100	300	340	11.97
AT11-40	1500	1100	325	365	14.63
AT13-40	1500	1100	375	415	17.29
AT15-40	1500	1100	375	415	20.00

Notes:

The technical parameters of filter in the diagram are standard configuration, any other requires, please put forward.

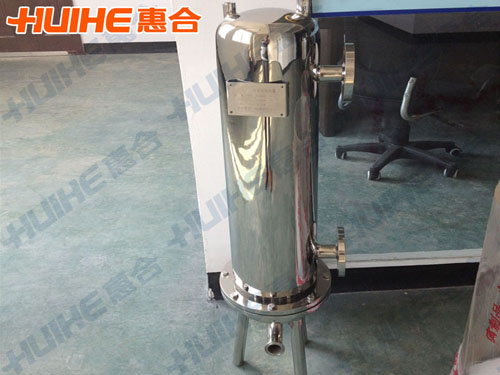

Stainless Steel Titanium Rod Filter Finished Picture
