Plate Heat Exchanger BR0.06

Plate heat exchanger is the ideal equipment that liquid-liquid, liquid-gas to change heat. It has advantages of high thermal efficiency, small heat loss, compact structure, small covering area, convenient installation and washing, wide range of application, and long service life etc. In the same pressure loss situation, the heat transfer coefficient is 3 to 5 times higher than pipe heat exchanger. And its covering area is about a third of the pipe heat exchanger, heat recovery rate can up to 90%.

Classification of Plate Heat Exchanger

1. according to the plate material: it can be divided into SUS304, SUS316, and titanium plate

2. according to the pads materials: it can be divided into butadiene acrylonitrile rubber (NBR), EPDM, fluorine rubber (TP)

3. according to the stent material，there are iron stents and stainless steel support

Usages of Plate Heat Exchanger

Suited Liquid Kinds:
Pure Water, Normal Water, Oil for eating, Mineral Oil, Sea Water, Saline Water, Mineral Water, Dilute Sulphuric Acid, Organic Water Solution, High-temp and concentration caustic soda, Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid

Structure of Plate Heat Exchanger

Plate heat exchanger is formed by the fixed paddles, the plate, mobile baffle, pole, up and under guider and retaining bolt. Between the fixed paddles and mobile baffle, there is a series of fixed plate. Every piece of plate is with gasket, so a parallel closing port is formed, medium alternately flows in every two pieces of plates.

Characteristics of Plate Heat Exchanger

1.design suitable heat exchanger

2.easy to install and maintain

3.environmental protection

4.high efficiency with low cost

Technical Parameters of Plate Heat Exchanger

Model	BR-0.06	BR-0.12	BR-0.2	BR-0.3
Heating transfer area of single piece（m²）	0.06	0.12	0.2	0.3
Corrugated shape	herringbone	herringbone	herringbone	herringbone
Plate thickness（mm）	0.6	0.7	0.7	0.7
Pads form	Clasp type	Clasp type	Clasp type	Clasp type
Tube diameter（mm）	32	38	51/80	51/100
Maximum working pressure （Mpa）	1.0	1.0	1.0	1.0
Maximum working temperature （℃）	150	150	150	150

Notes:

1. The technical parameters of plate heat exchanger in diagram are standard configurations, any other requirements, please put forward.

2. the process parameters need provided: the material properties, flow, heat transfer temperature, special requirements, etc.

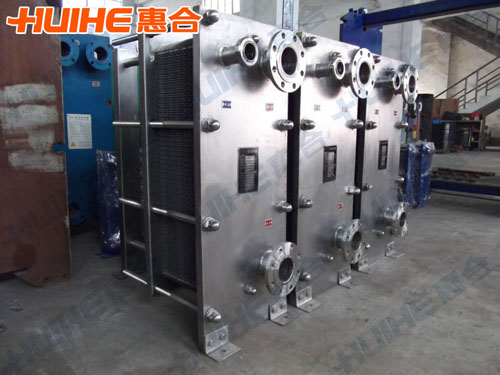

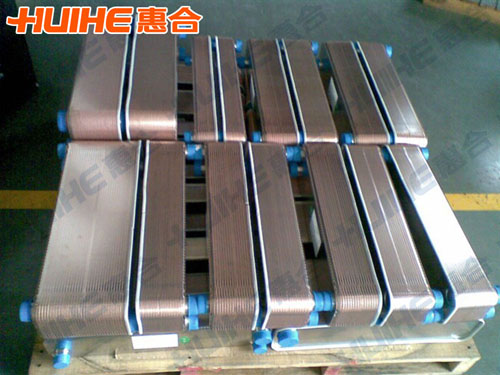

Plate Heat Exchanger Finished Picture
