Titanium Plate Heat Exchanger

Plate heat exchanger is the ideal equipment that liquid-liquid, liquid-gas to change heat. In the same pressure loss situation, the heat transfer coefficient is 3 to 5 times higher than pipe heat exchanger. And its covering area is about a third of the pipe heat exchanger, heat recovery rate can up to 90%.We will provide you the most competent products and solutions, both of quality and price.

Classification of Plate Heat Exchanger

1. according to the plate material: it can be divided into SUS304, SUS316, and titanium plate

2. according to the pads materials: it can be divided into butadiene acrylonitrile rubber (NBR), EPDM, fluorine rubber (TP)

3. according to the piece area, there are 0.15㎡, 0.24 ㎡, 0.65 ㎡, 0.85 ㎡, 1.54 ㎡ and 1.8 ㎡

4. according to the stent material，there are iron stents and stainless steel support

Usages of Titanium Plate Heat Exchanger

Marine industry:
Plate exchangers are used in oil coolers, to cool the water in engine cooling circuits, for drinking water generators.

Plate heat exchangers are used in the secondary cooling circuits.

Chemical industry
Plate heat exchangers are used to control process temperature, heating, cooling the chemical products, evaporators, condensers.

Food industry
Plate heat exchangers are used in the manufacture of milk, butter, cheese, desserts, honey, yogurts, beer, ices, soft drinks, bottled water and sauces.

Working principle of Titanium Plate Heat Exchanger

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Characteristics of Titanium Plate Heat Exchanger

1. Compact structure: plates are closely arranged, compared with other types of heat exchanger, plate heat exchanger has less covering area and space, the area is only 1/5 of the tubular heat exchanger.

2. Long service life: plate heat exchanger uses stainless steel or titanium alloy plate for repression, can resistant to all kinds of corrosive medium. The pads can change at will, and convenient in maintenance.

3. Strong adaptability: plates are all independent components, according to requirements, it can increase or decrease process at will, various in form. It also can be used in all kinds of different process requirements.

Technical Parameters of Plate Heat Exchanger

Model	BR-0.06	BR-0.12	BR-0.2	BR-0.3
Heating transfer area of single piece（m²）	0.06	0.12	0.2	0.3
Corrugated shape	herringbone	herringbone	herringbone	herringbone
Plate thickness（mm）	0.6	0.7	0.7	0.7
Pads form	Clasp type	Clasp type	Clasp type	Clasp type
Tube diameter（mm）	32	38	51/80	51/100
Maximum working pressure （Mpa）	1.0	1.0	1.0	1.0
Maximum working temperature （℃）	150	150	150	150

Notes:

1. The technical parameters of plate heat exchanger in diagram are standard configurations, any other requirements, please put forward.

2. the process parameters need provided: the material properties, flow, heat transfer temperature, special requirements, etc.

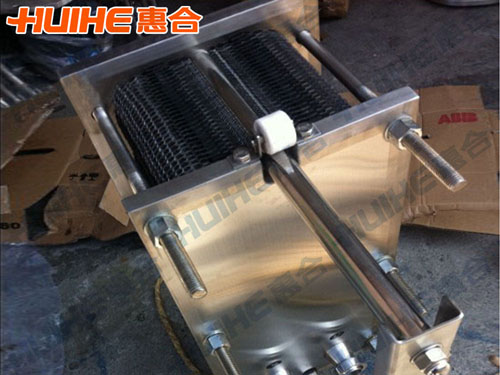

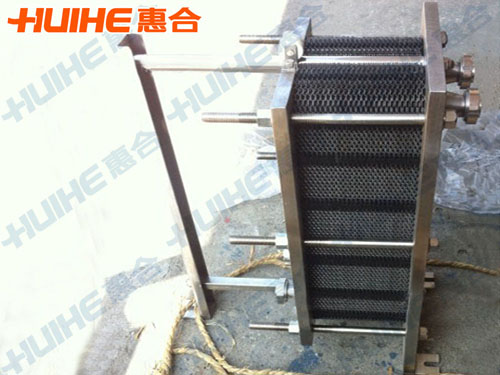

Titanium Plate Heat Exchanger Finished Picture
