Liquid Storage Tank

Liquid storage tank is widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries fields, which is cleanable to sanitary standards.

Classification of Liquid Storage Tank

1. According to Structure: opening on the head & ramp bottom，opening on the head & conical sealed head on the bottom , up & down conical sealed head, up & down elliptical sealed head

2. According to Material: there are SUS 304 and SUS316L

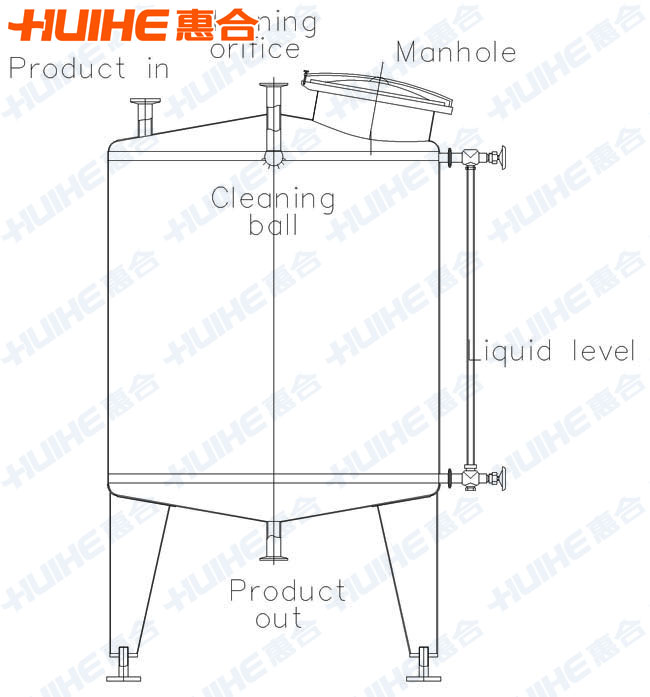

Structure of Liquid Storage Tank

Usage of Liquid Storage Tank

1. The stainless steel tank can be used as liquid storage tank, mixing tank, temporary storage tank, water storage tank and so on.

2. It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.

Characteristics of Liquid Storage Tank

Liquid storage tank is good at rust prevented and stronger than plastic’s because of material.Morover,it has bayonet cover and gasket ring,so can keep contents safe.

Technical Parameters of Liquid Storage Tank

Model	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Height （mm）	600	800	800	800	1000	1220	1220	1500	1500
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	sanitary manhole, cleaning ball, liquid level gauge

Notes:

1. The technical parameters of storage tank is standard configuration. Any specific requirements, please point out.

2. The process parameters that need provided when choosing the stainless steel tank: the nature of material, working pressure, temperature, specific requirements, etc.

Technical Requirements of Liquid Storage Tank

1. File support: the structural size drawing of the device (PDF) and instructions are available.

2. Required by operated function, the following criteria are adopted to design, manufacture and test

A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;

B. << The Steel Pressure Vessel (GB150-1998)>>;

C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;

D. << Food Machinery Safety and Heath (GB 16798-1997)>>.

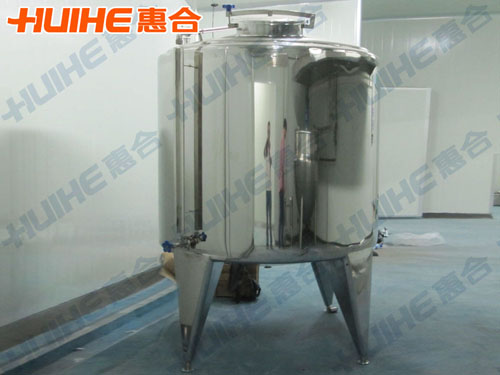

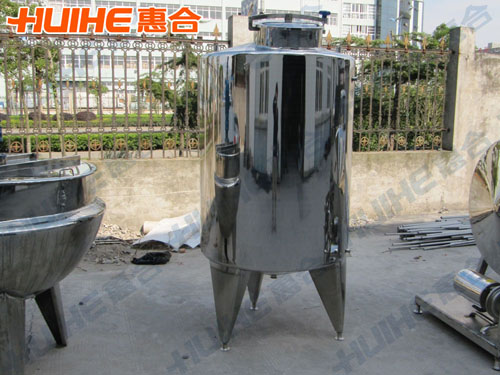

Liquid Storage Tank Finished Picture
