Electric CIP Cleaning System

Electric CIP Cleaning System is locally known as in situ cleaning system, referring to CIP, also known as cleaning position or positional cleaning (cleaning in place). Cleaning in place means not open or move device, which is, using cleaning fluid which is high temperature and high concentration to impose force on device equipment, thus cleaning the contacting surfaces. It is suitable for cleaning and purity of production device which is high demand to sanitary level.

Classification of Electric CIP Cleaning System

1. According to structure form, it can be divided into one-piece type, split type.

2. According to control mode, it can be divided into manual control, semiautomatic control and automatic control.

Structure of Electric CIP Cleaning System

1. Acid tank: SUS304, volume 500-3000L, etc., can be customized；

2. Alkali tank: SUS304, volume 500-3000L, etc., can be customized；

3. Water tank: SUS304, volume 500-3000L, etc., can be customized;

4. Process pump, return pump, adapter plate, plate heat exchangers, semiautomatic control box, operating platform, pipeline valves.

Usage of Electric CIP Cleaning System

1. Milk processing, beverage processing, Biopharmaceuticals processing.

2. The CIP system can clean in place for the pre-process system, blending system, the pipeline, all kinds of storage tanks, heat exchanger,filling machine in dairy or beverages industry.

Characteristics of Electric CIP Cleaning System

1. CIP cleaning system has characteristics such as economic operation, low cost, compact structure, small area, simple installation and maintenance. It can in-place clean the containers and pipes and other production device effectively. The entire cleaning process are processed in confined equipment (tank containers and pipeline), thus greatly reducing the chance of secondary contamination.

2. The system can be divided into first to fourth Road according to production needs. Particularly Road 2 or higher ones can clean several district at the same times, it also can clean during the production process. Thus greatly reduced the production time of the CIP cleaning.

3. It uses U.S. import pneumatic diaphragm to pump concentrated acid and concentrated alkali. Not only to improve the equipment in good order but also reduce the repair rate of equipment. The most important thing is reducing the operating costs.

4. Especially the automatic CIP can automatically detect, plus liquid, emissions, display and adjust to cleaning fluid. It is more in line with sanitary requirement and production environment demand of modern large-scale fluid drugs and food processing because its reliable operation, high automation, simple operation and good cleaning effect.

5. It can automatically switch process parameters and adjust cleaning time, PH, temperature and other parameters.

6. All operations can be recorded to facilitate GMP certification.

7. CIP cleaning system divided into one-piece type, dual tanks and multi tanks. There are fixed and moving.

Cleaning Procedures

Take the beverage industry as example, the procedure is as follows:

1. 3-5 minutes, room temperature or above 60℃ hot water; caustic 10-20minutes, 1%-2% solution, 60℃-80℃; intermediate washing 5-10 minutes, water below 60℃; final washing 3-5 minutes, pure water.

2. 3-5 minutes, room temperature or above 60℃ hot water; caustic 5-10minutes, 1%-2% solution, 60℃-80℃; intermediate washing 5-10 minutes, water below 60℃; sterilization 10-20 minutes, hot water above 90℃.

Cleaning fluid ensures cleaning effect, resulting in some mechanical action. That is, by increasing the turbulence of the fluid to increase the impact, to achieve a certain cleaning effect.

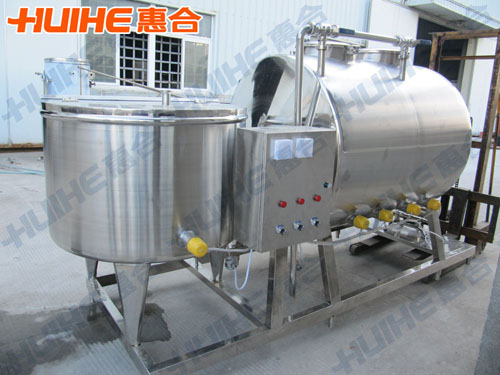

Electric CIP Cleaning System Finished Picture
