Vertical Cooling Milk Pot

Vertical Cooling Milk Pot introduces foreign advanced technology in the nineties. Through the automatic control system, can achieve the effect of one step observation operation, making cold milk quickly fell to the required temperature and keeping constant temperature. Prevent bacterial breed produce; maintain original milk in A level. Refrigeration compressor with high performance and power saving equipped with reliable protector, will not burn motor out due to overload or system fault. The heat insulation layer uses polyurethane foam new process insulation, performance is good. The pot body selects high quality stainless steel materials (OCr18Ni9) production, with automatic cleaning device and mixing device.

Structures of Vertical Cooling Milk Pot

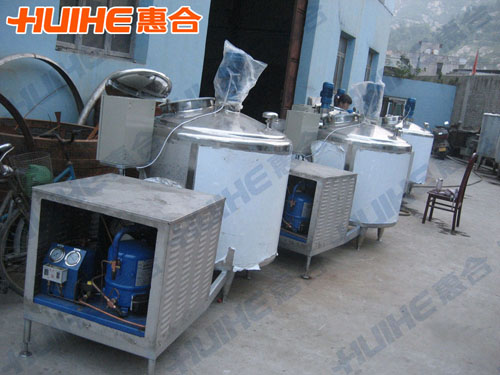

Live Demonstration of Cooling Milk Pot

Vertical cooling milk pot is mainly composed of stainless steel tank body, stirrer, washing machine, cooling unit and electric control boxes.

Milk pot is a horizontal elliptic form, between the inside and outside pot is poly amino ester hard foam board, the material has low thermal conductivity, light proportion, high strength, and low bibulous rate.

Insulation layer, insulation performance is good. This product design, manufacturing technology is advanced and reliable in performance. Cooling, heat preservation performance and health are all in line with the international advanced level.

Characteristics of Vertical Cooling Milk Pot

1. Rigid wall uses the advanced plate evaporator to directly refrigerate milk.

2. Rcompressor uses imported French closed compressor set, equipped with the reliable midpoint defend device, will not burn motor out due to overload or system fault.

3. Pots are all adopt stainless steel SUS304 or SUS316, with automatic pressure cleaning and manual and automatic stirring device,

4. Insulation layer uses polyurethane foam with good insulation performance.

Technical Parameters of Vertical Cooling Milk Pot

Volume L	1000	2000	3000	5000	8000
Refrigeration amount W	9000	15000	19000	15000×2	19000×2
Refrigeration working medium R	R22	R22	R22	R22	R22
Insulation performance (温度)	≤1℃/4h	≤1℃/4h	≤1℃/5h	≤1℃/5h	≤1℃/6h
Stirring speed R/min	36r/min	36r/min	36r/min	36r/min	36r/min
Designed Power Kw	3..3+0.55	5.5+0.55	6.8+0.55	5.5*2+0.75	6.8*2+0.75
Power	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Size mm	2800×1150 ×1600	3450×1550 ×1850	3700×1750 ×1950	4200×2050 ×2200	50000×2300 ×2650

Notes:

1. The technical parameters of cooling milk pot for reference (in kind prevail), any special requirement, please put forward.

2. process parameters that need provided: capacity, special requirements, etc.

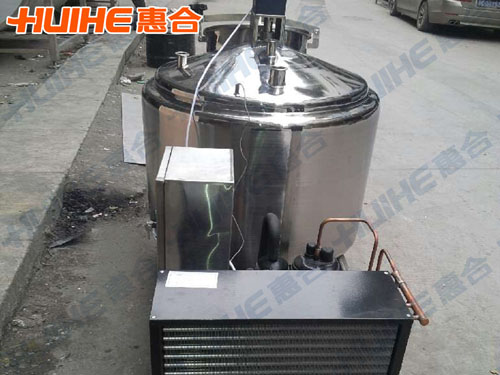

Vertical Cooling Milk Pot Finished
