Three Stainless Steel Butterfly

Three stainless steel butterfly body and disk were all out from full machined, high polished that demanded of the high quality in the developed country around the world. All of the sanitary valve have been 100% press test before order, Our products are widely used in dairy, brewery, food, beverage, food machine industries and so on.

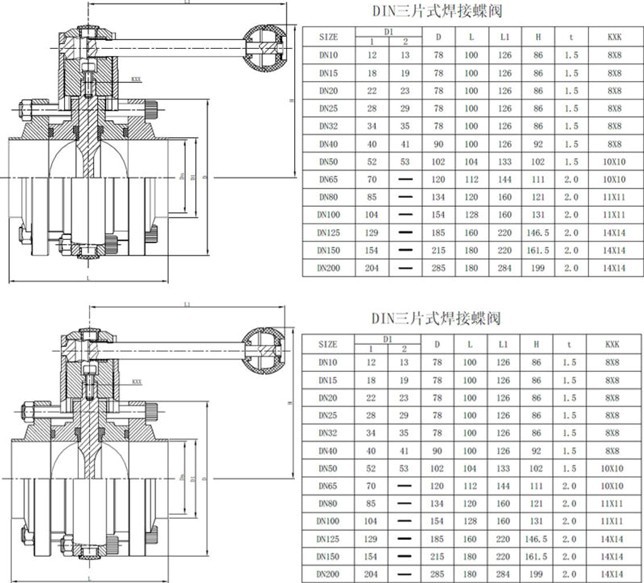

Structure of Three Stainless Steel Butterfly

Technical Parameters of Three Stainless Steel Butterfly

Product Name:	Stainless steel three pieces butterfly valve with pull handle
Valve Body Material:	1.4404/1.4301, SS304/SS316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN10-DN300, 1/2"-12"
Availably connection:	Clamp / weld / thread/ weld thread/ flange
Availably standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Control:	Sensor, C-TOP, C-top controller(AS-I), positioner
Certificate:	ISO, PED/97/23/EC, FDA.177.2600
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Three Stainless Steel Butterfly Finished Picture
