Single Flange Butterfly Valve

Single flange butterfly valve is widely used in water system, sewage system, air condition system, chemical industry, pulp factory, power supply, medicine industry, petroleum area and other systems for closing and adjustment.

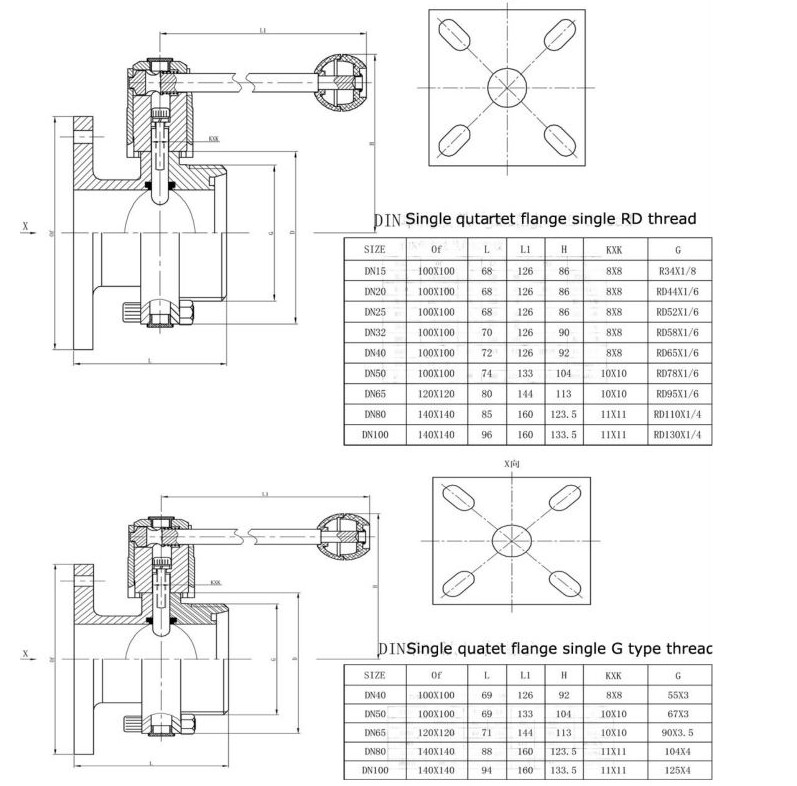

Structure of Single Flange Butterfly Valve

Technical Parameters of Single Flange Butterfly Valve

Product Name:	Stainless steel manual single quatet flange single thread butterfly valve with pull handle
Valve Body Material:	1.4404/1.4301, SS304/SS316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN40-DN100
Availably connection:	Clamp / weld / thread/ weld thread/ flange
Availably standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Control:	Sensor, C-TOP, C-top controller(AS-I)
Certificate:	ISO, PED/97/23/EC, FDA.177.2600
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

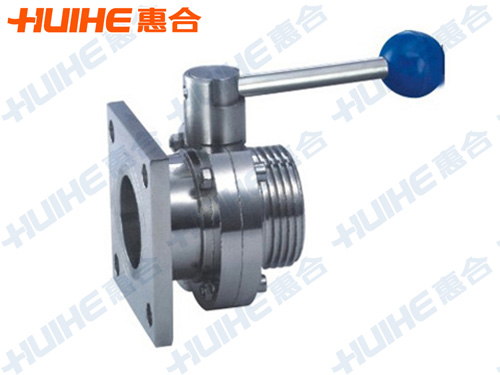

Single Flange Butterfly Valve Finished Picture
