Multi-function Mushroom Type Extraction Tank

Multi-function mushroom type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft.

Structure of Multi-function Mushroom Type Extraction Tank

The multi-function extraction tank includes: extraction tank, defoaming machine, congealing machine, cooling machine, oil-water separating machine, medicine pumps, the console and other accessories.

Usages of Multi-function Mushroom Type Extraction Tank

This extraction equipment is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.

Characteristics of Multi-function Mushroom Type Extraction Tank

1. Shape above big under small, mushroom type. Big: boiling on buffer space is large, is not easy to run; under the small, fast heat transfer solution, heating time is short, high extraction efficiency.

2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.

3. It has the advantages of high efficiency, easy to operate.

Technical Parameters of Multi-function Mushroom Type Extraction Tank

Style No	TQ-1000	TQ-2000	TQ-3000	TQ-6000	TQ-8000	TQ-10000
Volume	1200	2300	3200	6300	8500	11000
Tank design pressure(MPA)	0.09
Jacketed layer design pressure(MPA)	0.3
Feed orifices diameters(mm)	400	400	400	500	500	500
Heating area (㎡)	3	4.7	6.8	10	12	15
Condensation area (㎡)	4	5.4	8	10	15	18
Cooling area(㎡)	1	1	1.5	2.2	2.2	2.2
Filter area (㎡)	0.25	0.25	0.25	0.3	0.3	0.36
Slag discharge door diameters(㎡)	800	800	800	1000	1000	1000
Gas consumption（kg/h）	285	346	570	718	903	1140
Equipment weight（kg）	1800	2050	2400	3025	4030	6500
Heating steam orifices	DN-50	DN-50	DN-60	DN-60	DN-80	DN-80
Secondary orifices	DN-80	DN-80	DN-100	DN-100	DN-100	DN-100
Cooling water orifices	DN-50	DN-50	DN-60	DN-60	DN-70	DN-70
Motor power(KW)	2.2	4	5.5	5.5	7.5	7.5
Stirring speed(rpm)	21	21	32	32	32	32

Notes:

Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.

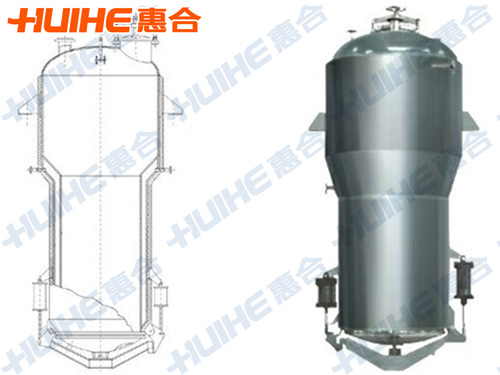

Multi-function Mushroom Type Extraction Tank Finished Picture
