HH-DWJ Elevator

HH-DWJ elevator uses the domestic and overseas advanced processing technology. It is the ideal equipment of various kinds of granular and small bulk material conveying ascension (food of apples, pears, tomatoes, citrus, chemical products, food crops, etc).

Live Demonstration of Ketchup Production Line

Characteristics of HH-DWJ Elevator

1,Adopts domestic and overseas advanced technology and manufacturing technology, is domestic first uses the promote peace scraper chain plate and a screw connection structure; effectively prevent the screw off after the period of equipment cause unnecessary damage. Promote stable conveying material scraper use is made of stainless steel with long life.

2,With oil pans and ground oil pipe, guarantee food material cleaning and hygiene.

3,Bearing equipped with waterproof device, bearing service life is long;

4,Chain is equipped with tension bridle device can adjust the chain slack;

5,The motor is equipped with stainless steel protective cover against rain and water.

6,The whole frame is made of high quality stainless steel, durable, beautiful appearance and reasonable.

Technical Parameters of HH-DWJ Elevator

Model	HH-DWJ-5	HH-DWJ-10	HH-DWJ -15	HH-DWJ -20	HH-DWJ -30	HH-DWJ -40
Output kg	5000	10000	15000	20000	30000	40000
Power KW	1.5	2.2	3	3	4	4
Overall size mm	3500×800×700 ×3800	4500×1180×700 ×4800	5500×1280×800 ×4800	6000×1380×800 ×4800	7000×1480 ×900×4800	8000×1580 ×900×4800
Material	304/316/443	304/316/443	304/316/443	304/316/443	304/316/443	304/316/443

Notes: installation dimension—(can according to customer processing size flexible adjustment)

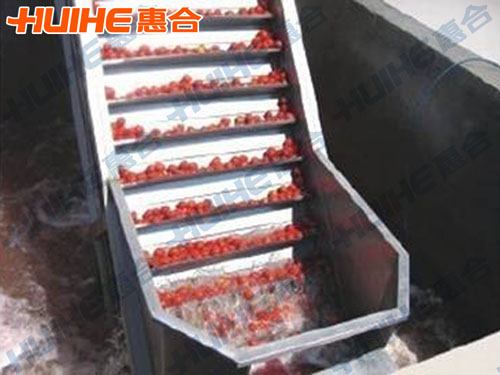

HH-DWJ Elevator Finished Picture

Notice: We provide equipment suggestion, proposal design, project installation and after_sale service for liquid food turn-key projects.
