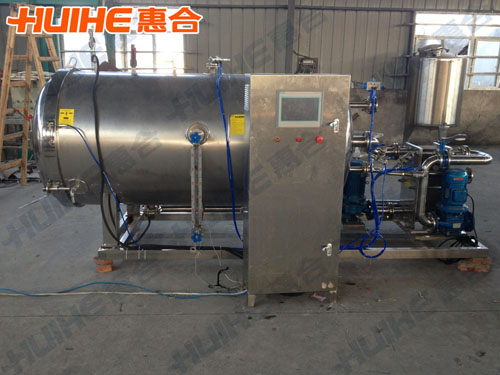

Fully Automatic Autoclave

The entire process of computer fully automatic autoclave adopts PLC automatic control, tank temperature control at + / - 0.2 ℃, multi-stage temperature control to ensure the cooling and heating, constant temperature control and the time delay function of the strong, the pressure of high-fidelity simulation curve control ensures that the canned sterilization process of filling pressure, back pressure and special product pressure control of sterilization.

Classification of Autoclave

live demonstration of autoclave

1. According to material, there are SUS304 and carbon steel（Q235-B）

2. According to heating type, it can be divided into steam heating and electric heating.

3. According to control type, it can be divided into manual control, semiautomatic control and automatic control.

Components of Fully Automatic Autoclave

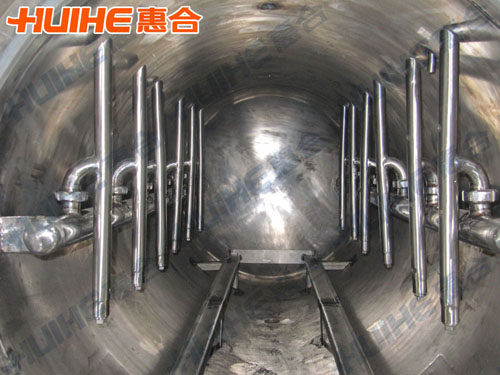

The sterilization equipment includes body, lid, swivels, tracks, seals, rollers, locking wedge, steam, and nozzle, cooling pipe and valves and so on.

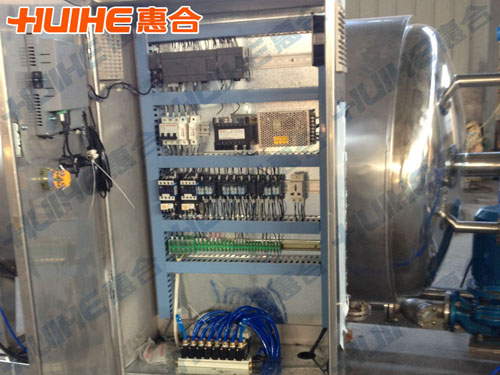

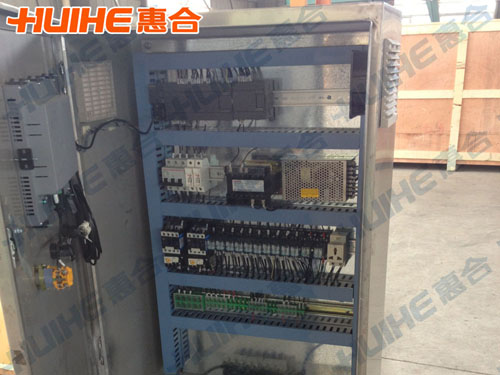

The control system includes PLC control, touch screen and control cabinet.

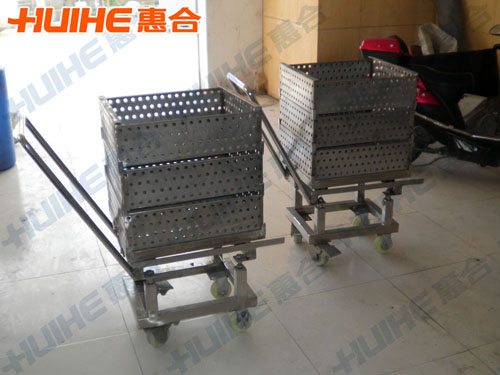

Accessories includes pallet, pallet trucks, outside carts, circulation pump, water pump, pipe valve.

Usages of Fully Automatic Autoclave

1. plastic containers: PP bottle, HDPE bottles.

2. soft bag packaging: tin foil bag, transparent bag, vacuum bags, high-temperature cooking bags, etc.

3. specialist of printed tinplate: steel and glass products.

Characteristics of Fully Automatic Autoclave

Computer fully automatic autoclave uses the PLC automatic control and multi-stage sterilization, at any time in the control touch screen input new sterilization formula, applicable to the production of more than a pot.

Technical Parameters of Autoclave

Volume	600L	1100L	1900L	2200L	3100L	4000L
Body diameter （mm）	800	900	1000	1100	1100	1200
Body length （mm）	1000	1500	2000	2000	3000	3000
material	SUS304/ Q235-B
Designed pressure	0.35MPa
Working pressure	＜0.3MPa
Designed temperature	140.7℃
Working pressure	＜135℃
