Full-automatic Plate Sterilizer Machine

Full-automatic plate sterilizer Machine is sterilization equipment specially designed for dairy drinks or similar liquid materials. It is the ideal equipment that material can extend the shelf life purpose through sterilizing and cooling. At the same time, according to users’ requirements, corresponding configuration of high accuracy of the automatic control system.

Usages of Full-automatic Plate Sterilizer

Full-automatic plate sterilizer machine is widely used in fruit juice, tea, milk, wine and other liquids.

Main Configuration of Full-automatic Plate Sterilization Machine

Material pump, balancing tank,hot water system, temperature controller and recorder,electric control sysem, etc.

Characteristics of Plate Sterilization Machine

1、Includes heating section, sterilizing section and cooling section. Tube group has the features of simple structure and small resistance.

2、There is superheating water and cooling water channel during the cleaning which can avoid the scaling.

3、LCD monitor, automatic PLC system, multi-stage recorder to record important temperature.

Main parameters of Plate Sterilizer

Process parameters: 65 ℃ homogeneous to 120 ℃ (30 S)-5 ℃

Cooling water 25 ℃

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam prssure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam prssure (bar)	Electric power (kw)	Body size (L×W×H)	Weight (kg)	material	steam	medium
HE-BR0.1-GCH-1	1	120	6.0	2.8	1.6×1.4×1.8	460	25	DN25	25
HE-BR0.1-GCH-2	2	240	6.0	3.0	1.6×1.4×1.8	460	25	DN25	25
HE-BR0.25-GCH-3	3	390	6.0	4.0	2.0×1.8×2.0	460	38	DN32	38
HE-BR0.25-GCH-4	4	520	6.0	4.0	2.0×1.8×2.0	500	38	DN40	38
HE-BR0.25-GCH-5	5	650	6.0	5.5	2.0×1.8×2.0	560	38	DN40	38
HE-BR0.25-GCH-6	6	780	6.0	5.5	2.3×1.8×2.0	600	51	DN40	51
HE-BR0.25-GCH-8	8	1040	6.0	5.5	2.3×1.8×2.0	720	51	DN50	51
HE-BR0.25-GCH-10	10	1300	6.0	7.8	2.5×1.8×2.0	820	51	DN65	51
HE-BR0.4-GCH-15	15	1950	6.0	10.5	2.8×1.8×2.5	1620	63	DN80	63
HE-BR0.6-GCH-20	20	2400	6.0	15.0	3.0×3.0×2.5	2400	63	DN100	63

Notes:

1. The parameters of plate sterilizer in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.

2. process parameters that need provided：material properties, sterilization process, specific requirements, etc.

3. auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

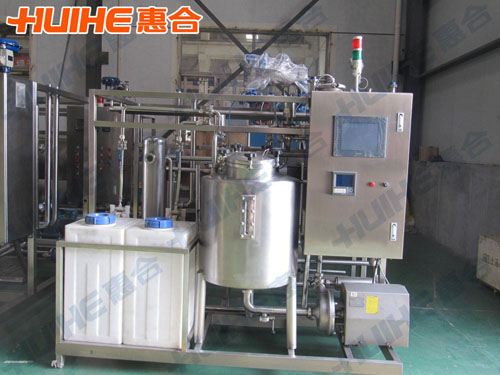

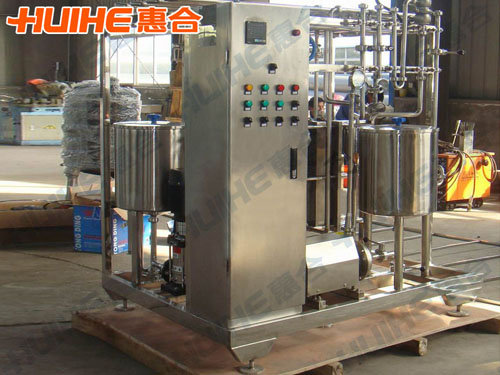

Full-automatic Plate Sterilizer Machine Finished Picture
