Semi-automatic Plate Sterilizer Machine

Semi-automatic plate sterilizer machine is designed specially in pasteurism for milk,juice,drink.beer,food and frug before packing,which can help to postpone the storage period by sterilizing and cooling.It is recommended as a second pasteurism in the piplining.It can be prepared in different process even with high auto-controlling according to the specific request from customer like heating, stenilizing, warm-keeping and cooling.

Main Configuration of Plate Sterilization Machine

The unit mainly composed of the mass balance and conveying system, plate heat exchanger system, material pipeline system, hot water pipeline system, steam pipeline system, hot water heating system, material automatic backflow system, automatic temperature control and electrical control system.

Usages of Semi-automatic Plate Sterilizer Machine

The sterilization equipment is widely used in milk, juice, drink, beer, food and other liquid.

Characteristics of Semi-automatic Plate Sterilizer Machine

It's more equal, compensate and rapid than traditional water sterilization which can help to improve the efficiency and decrease the manufacturing cost and improve market competition for the customers.

The main character of this eqipment is that the net can be used for a long time,and won't bring a large distrotion it high temperature,which is used the spray mouth to homogenize the flow and temperature.The temperature can be chosen as the PLC or PID controlling.

Main parameters of Plate Sterilizer

Process parameters: 65 ℃ homogeneous to 120 ℃(30 S)-5 ℃

Cooling water 25 ℃

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Cold water flow （T/H）	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Cold water flow （T/H）	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Material	Steam	Medium
HE-BR0.1-DJ-1	1	40	5.0	2	2.8	1.6×1.4×1.8	820	25	DN25	25
HE-BR0.1-DJ-1.5	1.5	60	5.0	3	2.8	1.6×1.4×1.8	860	25	DN25	25
HE-BR0.1-DJ-2	2	80	5.0	4	3.0	1.6×1.4×1.8	890	38	DN25	38
HE-BR0.1-DJ-3	3	120	5.0	6	3.7	1.8×1.6×2.0	1030	38	DN25	38
HE-BR0.1-DJ-4	4	160	5.0	8	3.7	1.8×1.6×2.0	1100	38	DN25	38
HE-BR0.1-DJ-5	5	200	5.0	10	3.7	1.8×1.6×2.0	1170	38	DN32	38

Notes:

1. The parameters of plate sterilizer in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.

2. process parameters that need provided：material properties, sterilization process, specific requirements, etc.

3. auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

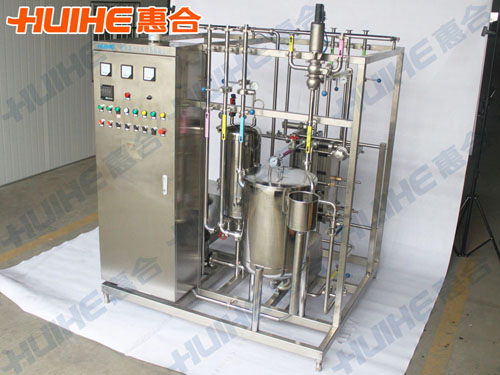

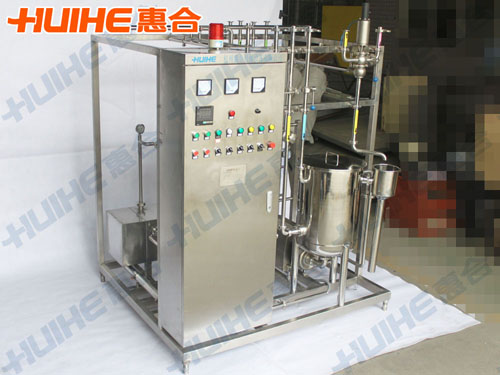

Semi-automatic Plate Sterilizer Machine Finished Picture
