Your are here: Home >> Products >>Stainless Steel Sphere Concentrator
Directory
- Structure of Stainless Steel Sphere Concentrator
- Usages of Stainless Steel Sphere Concentrator
- Characteristics of Stainless Steel Sphere Concentrator
- Technical Parameters of Stainless Steel Sphere Concentrator
- Stainless Steel Sphere Concentrator Finished Picture

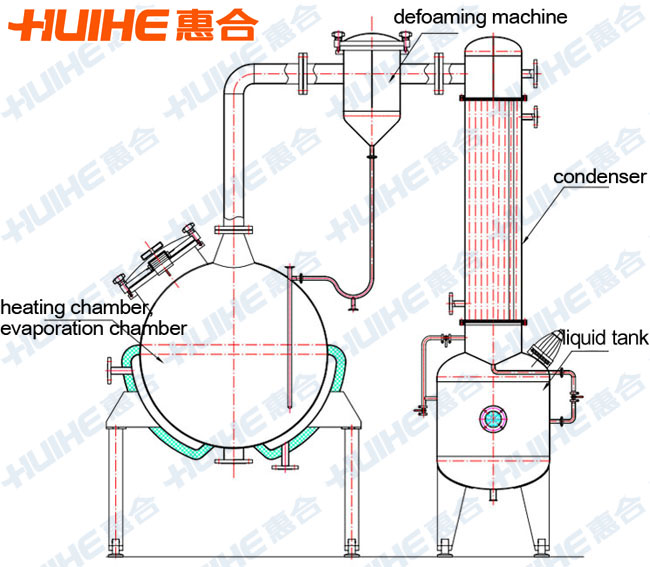

Structure of Stainless Steel Sphere Concentrator
Usages of Stainless Steel Sphere Concentrator
It is widely used in the pharmacy, foodstuff and chemistry and other industries to the concentration of liquid materials, the distillation process.
Characteristics of Stainless Steel Sphere Concentrator
Because of the spherical concentrator (cans) working principle is to use reduced pressure concentration, so it has concentrated time is short, and won't destroy the active ingredients of thermal sensitive material. In addition, the enrichment equipment part contacting materials adopts stainless steel, so also known as stainless steel spherical concentrator; it has good corrosion resistance, durability, and accords with GMP standard.
Technical Parameters of Stainless Steel Sphere Concentrator
Model |
QN-300 |
QN-500 |
QN-700 |
QN-1000 | |
Evaporation capacity (kg/h) |
70 |
120 |
145 |
195 | |
Volume(L) |
300 |
500 |
700 |
1000 | |
Jacket pressure(MPA) |
0.09 | ||||
Vacuum degree(mmHg) |
500-620 | ||||
Heating area |
1.3 |
1.6 |
2 |
2.8 | |
Condensation area |
2.6 |
3.5 |
4 |
5.6 | |
Overall size(mm) |
Length |
1900 |
2030 |
2100 |
2335 |
Wide |
1100 |
1200 |
1300 |
1520 | |
Height |
2300 |
2500 |
2600 |
1765 |
Notes:
Technical parameters of concentrator can be adjusted according to the actual working condition of physical properties.

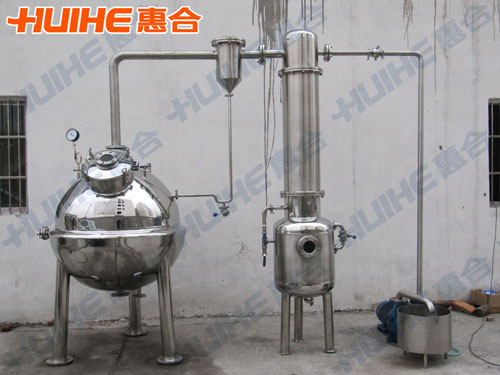

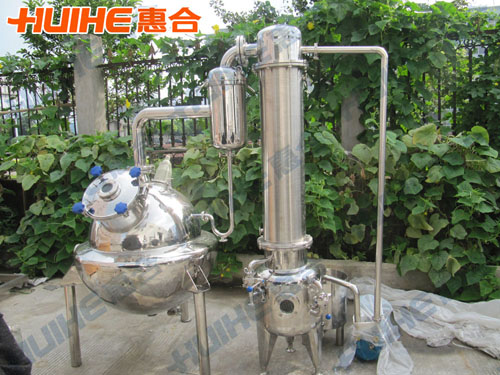

Stainless Steel Sphere Concentrator Finished Picture
