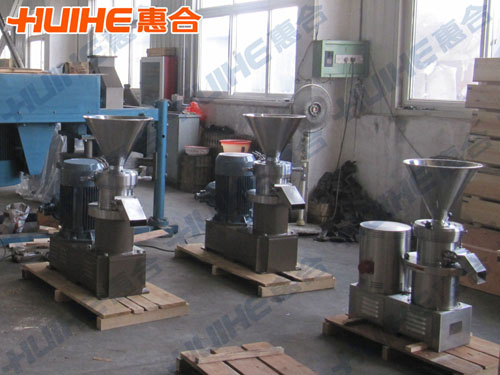

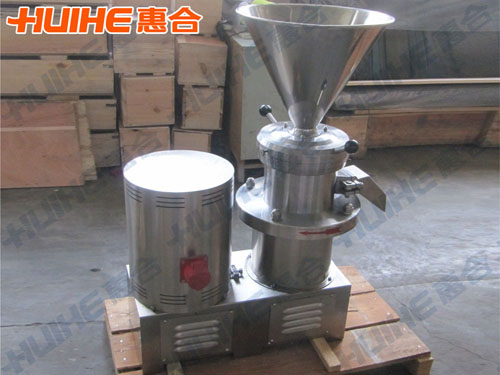

live demonstration of colloid mill

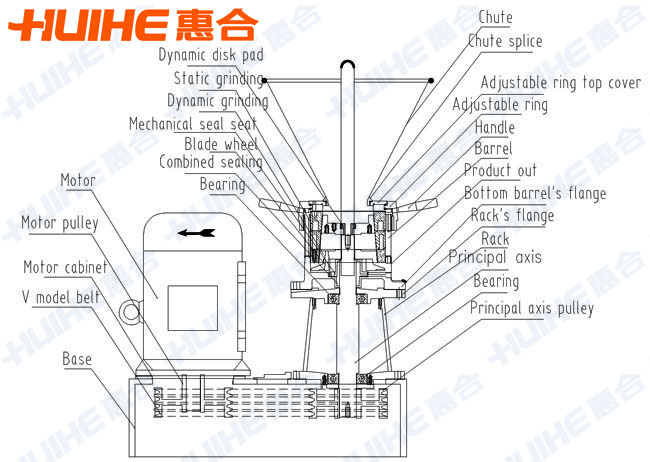

1.       According to Structure: there are Vertical Colloid Mill and Split Colloid Mill

2.       According to Angle of Appearance: there are Ordinary Colloid Mill and Sanitary Colloid Mill

The split colloid mill is mainly used in the food industry, chemical industry, pharmaceutical industry, daily industry, building industry, papermaking industry, plastic industry, battery industry, etc.

1,Relative to the pressure-type homogenizer, colloid mill first is a kind of centrifugal equipment. It has the advantages of simple structure, convenient maintenance and is suitable for high viscosity materials and large particles materials.

2.Also, its main drawback is determined by its structures. First, as for the centrifugal movement, the flow is not constant, corresponding to viscous material, the flow vary greatly. For example, the same equipment, in dealing with viscous lacquer and thin dairy fluid, the flow speed can differ 10 times above. Second, because of the high-speed friction between the stator and material, it is easy to generate large quantity of heat, and make the material processed. Third, the surface is easy to wear, and after wearing, the refined results will be significantly reduced.



























1.   The technical parameters of colloied mill  in the chart are standard configuration. Any specific requirements, please let us know.

2.   JML-50 is experimental colloid mill, also can be changed to 220V voltage.

3.   The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
