Grinding Miller

The basic principles of grinding miller is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made.

Live Demonstration of Grinding Miller

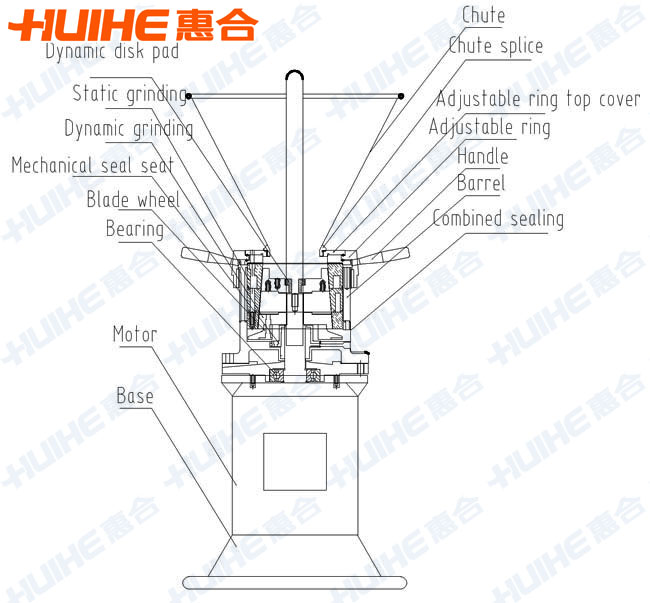

Structure of Grinding Miller

Usage of Grinding Miller

Grinding miller is mainly used in food, pharmaceutical, chemical and other industries to wet superfine grinding material, can be all kinds of semi liquid and emulsion material crushing, emulsion, homogeneous and mix.

Characteristics of Grinding Miller

Grinding miller equipment also called colloid mill, maintenance is convenient, suitable for high viscosity materials and large particles of the material.

Technical parameters of Grinding Miller

Model		JML-50		JML-80	JML-100	JML-120	JMF-80	JMF-100	JMF-120	JMF-140	JMF-180
Emulsification fineness um （single cycle or multi-cycle）		5~40		3~40	2~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjustment range mm		1-0.01		1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output t/h change according to materials			0.01-0.2	0.3-1	0.5-2	0.7-3	0.3-1	0.5-2	0.7-3	1-4	2-5
Motor	Power kw		1.1	3	5.5	7.5	4	5.5	7.5	11	15
	Pressurev		380	380	380	380	380	380	380	380	380
	Stirring speed r/min		2880	2880	2880	2880	2880	2880	2880	2880	2880
Grinding diameter mm			∮50	∮80	∮100	∮120	∮80	∮100	∮120	∮140	∮180
Discharge port diameter （时）			∮15	∮25	∮32	∮40	∮25	∮32	∮40	∮40	∮65
Cooling water pipe （时）			∮1/8〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞
Dimensions	Length mm		420	520	560	560	640	750	750	820	980
	Width mm		280	400	420	420	550	620	620	700	800
	Height mm		760	900	950	950	1030	1080	1080	1250	1550
Weight kg			45	84	113	135	210	275	295	325	450

Notes:

1. The technical parameters of colloied mill are standard configuration. Any specific requirements, please let us know.

2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.

3. The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.

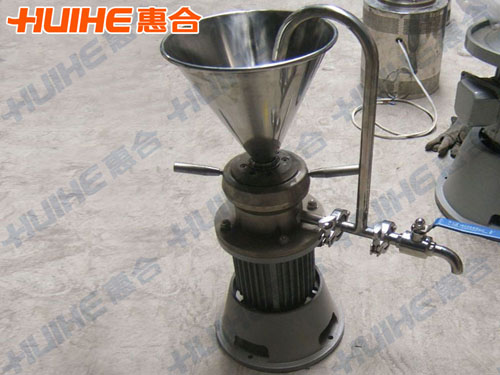

Grinding Miller Finished Picture
